Square Duct Machines
Home > Products > Square Duct Machines

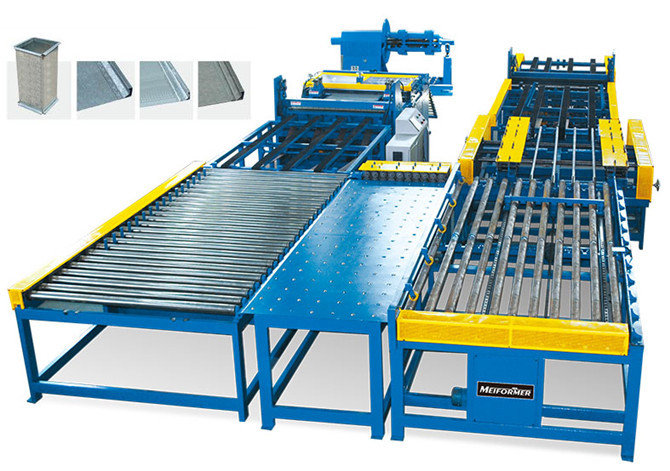

Duct Manufacture Line 8
Compared Line 7 (Automatic GDF duct flange line 7) , this line 8 is only add the pittsburgh-lock
automatically seam close, The customer can choose depend on their requirement.
Features:
Structure and layout of the entire ductline reasonable,was “Z” or “U”-type distribution
Modular design can be different functions needs to choose a flexible combination of modules
Can automatically implement the following functions:sheet cut-length,4pcs duct manufacture, “L”, “U”, “口”duct
Automatically finish GDF flange and pittsburgh-lock male&female
Coil straight, automatically notching
With automatically seam close
Specification:
Coil thickness:0.4-1.2mm
Part width:1000-1300mm.1500mm option
Part length tolerances:±0.5mm
Diagonal tolerances:±0.8mm
Processing speed:(up to)18m/min
Driven: hydraulic drive
Power:32kw
Beading section:standards
Notching and hole punching:combination of professional mold design for duct notching,suitable for TDF/TDC,TDC2 flange,stud,BPSL pittsburgh lock production process. CNC control:japan Mitsubishi
